GitLab

GitLab integration is project-level: you connect TestChimp to one GitLab project (repository) using a project access token and a project webhook. TestChimp uses the token for API access (list repos, read/write files, create merge requests) and the webhook for inbound sync when commits land in Git.

Self-managed GitLab is supported — provide your instance root URL (not a project URL or /api/v4 path).

Prerequisites

• A GitLab project with permission to create project access tokens and project webhooks.
• TestChimp project with GitLab integration enabled.
• Network path from GitLab to your TestChimp featureservice API host (webhook delivery).

Overview of setup

1. Configure GitLab base URL, project access token, and webhook signing token in TestChimp.
2. Create a matching project webhook in GitLab (Push + Merge request events).
3. Connect in TestChimp to validate the token.
4. Select the repository and map Tests and Plans folders.

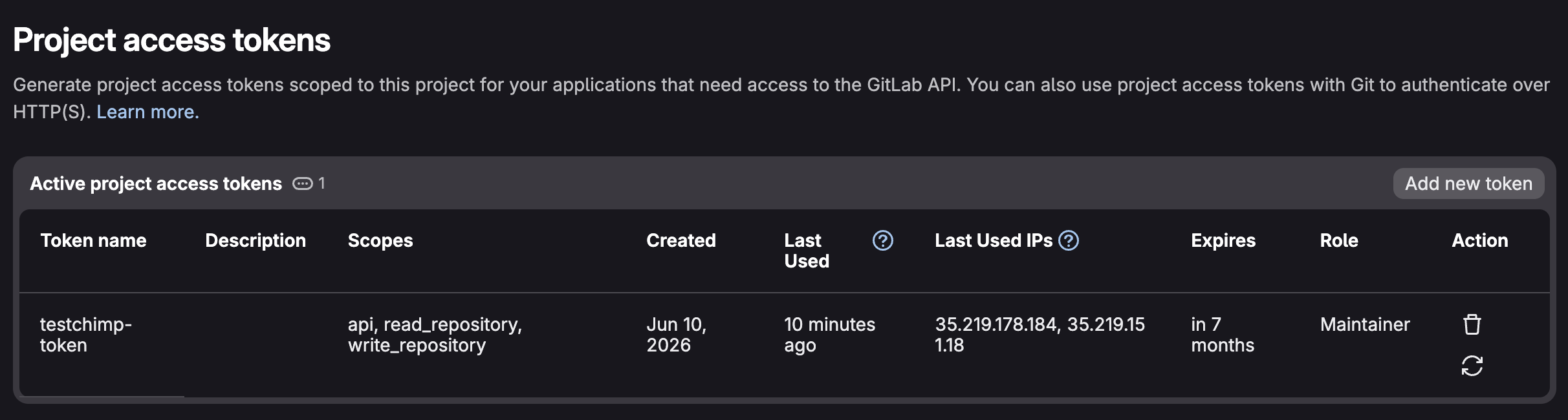

Step 1: Create a project access token (GitLab)

In GitLab → your project → Settings → Access tokens, create a project access token with these scopes:

Scope	Why
api	GitLab API access for sync, branches, and merge requests
read_repository	Read files and tree contents under mapped folders
write_repository	Push commits and create merge requests from TestChimp

Copy the token when GitLab shows it (glpat-…); you will paste it into TestChimp once.

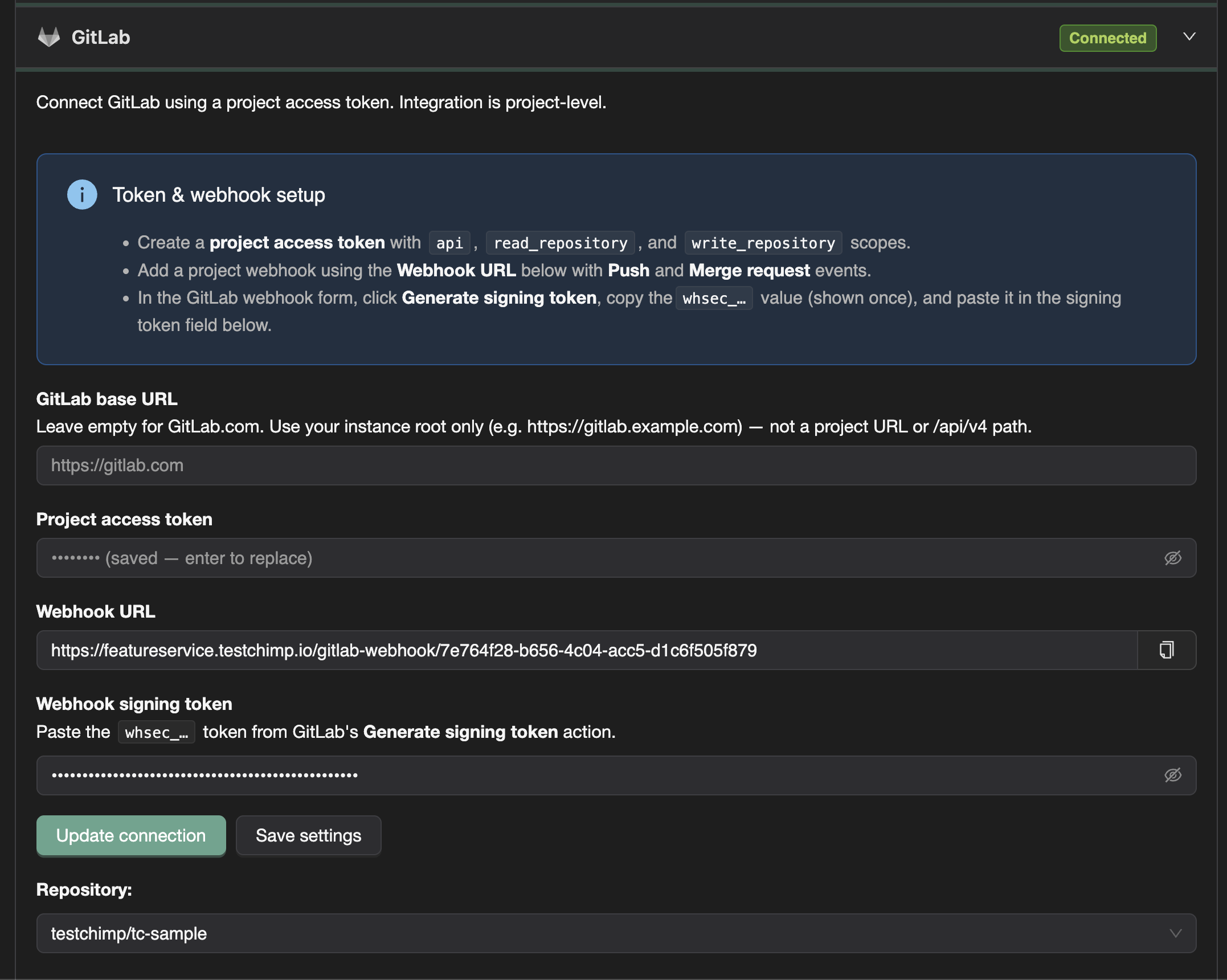

Step 2: Configure TestChimp (token, base URL, webhook secret)

In TestChimp → Project settings → Integrations → GitLab:

1. GitLab base URL — leave empty for GitLab.com. For self-managed instances, enter the instance root only, e.g. https://gitlab.example.com.
2. Project access token — paste the token from Step 1.
3. Webhook URL — copy the URL shown in TestChimp (format: {featureservice-host}/gitlab-webhook/{projectId}). You will paste this into GitLab in Step 3.
4. Webhook signing token — leave empty until Step 3 generates it; then paste the whsec_… value here.

Click Connect to validate the token. Use Save settings after updating the signing token or base URL.

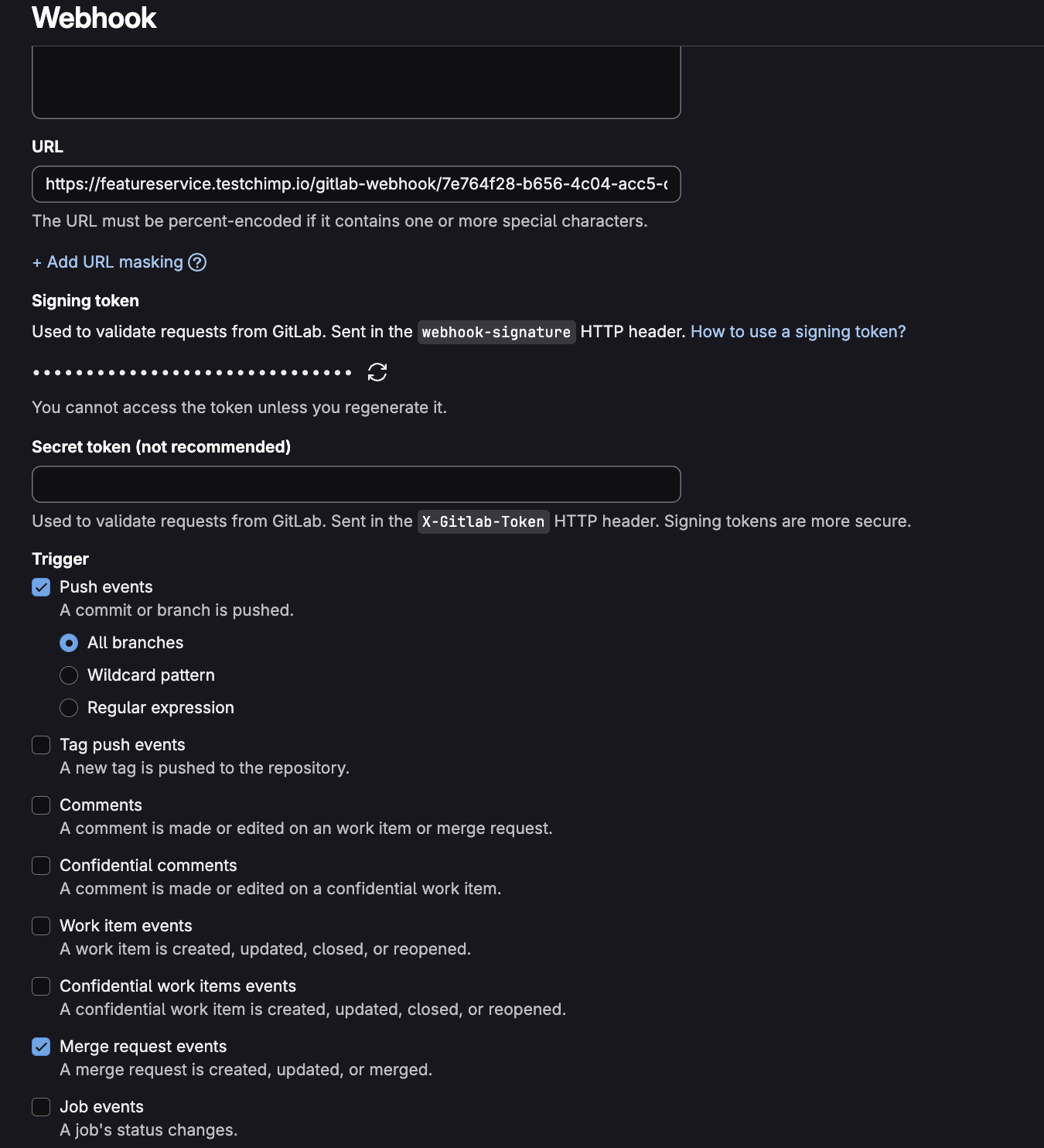

Step 3: Create the project webhook (GitLab)

In GitLab → your project → Settings → Webhooks:

1. URL — paste the Webhook URL from TestChimp.
2. Secret token / signing — click Generate signing token, copy the whsec_… value (shown once), and paste it into TestChimp’s Webhook signing token field. Save settings in both GitLab and TestChimp.
3. Trigger — enable only the events TestChimp handles:

Trigger	Required	Purpose
Push events	Yes	Import commits that touch mapped tests or plans paths on any branch; detect branch deletion
Merge request events	Yes	When an MR is merged, reconcile sync state for files that were part of that MR
Tag push events	No	Not used
Issue events	No	Not used
Note events	No	Not used
Job / Pipeline events	No	Not used
Wiki / Deployment / Feature flag / Release / Resource access token events	No	Not used

4. SSL verification — keep enabled for production GitLab.com; for local/dev instances you may disable only if you understand the risk.
5. Save the webhook. Use Test → Push events in GitLab to confirm delivery if needed.

:::note Why Push and Merge request?

• Push applies file changes under your mapped folders to TestChimp for the pushed branch (and archives branch metadata when a branch is deleted).
• Merge request (merged state) updates last_synced reconciliation after TestChimp-raised MRs are merged, keeping platform and Git aligned. Other webhook types are ignored and add noise without benefit. :::

Step 4: Select repository and map folders

After Connect succeeds, the GitLab panel shows repository and folder mapping controls (same UX as GitHub):

1. Select the GitLab project (group/project path).
2. Map Tests folder — SmartTests root.
3. Map Plans folder — markdown test-planning root.

Initial mapping may create merge requests on your default branch with prefixes testchimp-test-initial-map-… and testchimp-plan-initial-map-…. Review and merge them in GitLab.

If your GitLab project enforces branch naming rules, allow branches starting with testchimp- (sync and export use testchimp-test-sync-…, testchimp-plan-sync-…, testchimp-plan-export-…, etc.).

Step 5: Sync SmartTests and export plans

Once folders are mapped:

• SmartTests — use the branch selector and Sync with GitLab in the SmartTests IDE (same workflow as GitHub Sync, but merge requests instead of pull requests).
• Test planning — Import/Export → Sync to Git Repo raises an MR for plan changes. See Export to Git.

Inbound sync (Git → TestChimp)

Webhook	When	Behavior
Push	Commits pushed to any branch	Applies added/modified paths under mapped tests and/or plans folders; ignores paths outside those trees
Push (branch delete)	after SHA is all zeros	Archives branch metadata in TestChimp
Merge request	MR state is merged	Reconciles sync metadata for changed paths under mapped folders on the target branch

Webhook requests are authenticated with the whsec_… signing token (recommended). TestChimp verifies GitLab’s webhook-signature, webhook-id, and webhook-timestamp headers.

Self-managed GitLab

• Base URL must be the instance root (e.g. https://gitlab.company.com), not …/group/project or …/api/v4.
• Ensure GitLab can reach your TestChimp featureservice URL over HTTPS (or your approved internal route).
• Use a project access token on the same GitLab project you map in TestChimp.

Troubleshooting

Symptom	Check
Token validation failed	Token scopes (api, read_repository, write_repository); token not expired; correct base URL
Webhook 401 Unauthorized	Signing token in TestChimp matches GitLab Generate signing token value; save settings after paste
Push not importing	Webhook triggers include Push events; changed files are under mapped folder paths; repo in payload matches mapped repository
MR merge not reconciling	Merge request events enabled; MR was merged (not just closed)
MR creation blocked	Branch naming rules — allow testchimp-*
Wrong repository in sync	Re-select repository in folder mapping; one TestChimp project → one GitLab project

See also

• Code Repository — Overview
• GitHub integration
• Branch-specific test execution
• Run SmartTests in CI — includes a GitLab CI example
